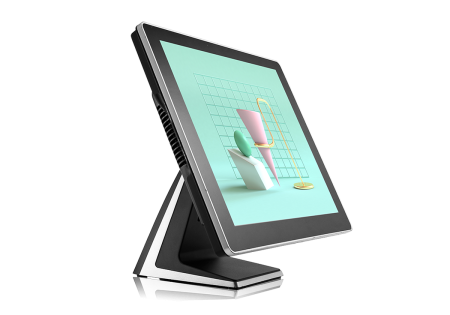

FEC PP-9667 (17")

Produktbeskrivning

FEC PP-9667 FEC_PP-9667.pdf

CPU

• Intel® Celeron® G3900TE, 2.3Ghz - PROJEKT BESTÄLLNING
• Intel® Core i3-7101TE, 3.4Ghz - PROJEKT BESTÄLLNING
• Intel® Core i5-7500T, 2.7Ghz - STANDARD/PROJEKT BESTÄLLNING
• Intel® Core i7-7700T, 2.9Ghz - PROJEKT BESTÄLLNING

Memory

• 8GB Standard, Max 32GB (2 x So-DIMM DDR4)

Storage

• 1 x 2.5” SATA HDD or SSD
• 1 x M.2 Storage (Optional)

Speaker

• 2 x 2W Internal Speaker

Display

• 17” TFT, 1280 x 1024

Touch

• True-Flat PCAP

Brightness

• 350 nits

MTBF

• 30K Hours

Power

• 12V / 150W External Adapter

OS

• Windows 10

Mounting

• VESA 100 x 100 mm

Certification

• FCC / CE Class B

Appearance

• Aluminum Die-casting + Plastic
• Black with Silver Trim

Temperature

• Operation: 0˚C ~ 40˚C (32˚F ~ 104˚F)
• Storage: -20˚C ~ 60˚C (-4˚F ~ 130˚F)

Dimensions (W x H x D)

• Product: 410 x 364 x 250 mm
• Carton: 548 x 540 x 360 mm

Weight

• Net: 7.5 Kg
• Gross: 10.8 Kg

Port

• 2 x DB9 (COM1 & COM2), 1 x RJ45 (COM4)
• 4 x USB 2.0 Type A
• 1 x RJ11 Cash Drawer (12V)
• 1 x Bi-directional Parallel Port
• 1 x PS/2 Keyboard / Mouse
• 1 x RJ45 GigaLAN
• 1 x Line Out
• 1 x VGA (5V/12V jumper setting)
• 1 x 12V DC Input
• 1 x 12V DC Jack 2.5 mm Output


• Side I/O Interface:
  1 x USB 2.0 Type A
